PowerBeam M5 AC – 22dBi

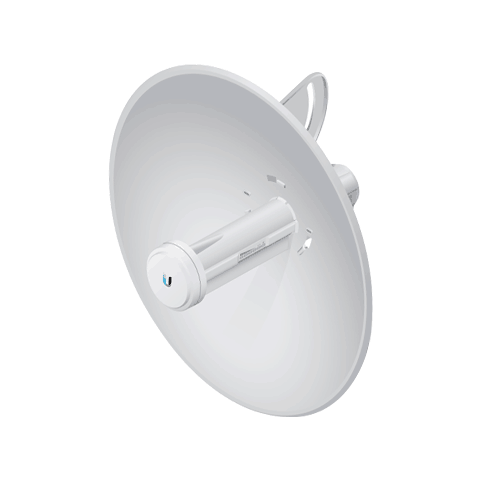

Ubiquiti Networks PBE-5AC-300 has a 300mm 22dBi dish antenna and a 5GHz InnerFeed radio. Utilizing airMAX tech, this PowerBeam is for long range PtP applications.

The PowerBeam ac directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam ac blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Processor: Atheros MIPS 74Kc, 560MHz
Memory: 64MB DDR2, 16MB flash
Networking interface: (1) 10/100/1000 Ethernet port
Channel size: 10/20/30/40/50/60/80MHz (PtP) / 10/20/30/40MHz (PtMP)
Protocol: 802.11ac
Polarization: Dual linear
Gain: 22dBi
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Non-Condensing
Supported Voltage Range: 20-26V DC
Power Supply 24V, 0.5A Gigabit PoE
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption 5.5W
