Advanced technologies
Uses H3C’s leading Comware network operating system to provide intelligent service scheduling management mechanism and supports loose coupling of different service modules as well as the dynamic loading of processes and patches.
Powerful security features
Service security
- Packet filtering, including stateful filtering, MAC address filtering, IP and port number filtering, and time range filtering.
- Real-time traffic analysis.
Network security
- Rich and comprehensive VPN technologies, including IPSec, L2TP, GRE, MPLS VPN and mix usage of different VPN technologies.
- Routing security protection, including OSPF/RIP/IS-IS/BGP dynamic routing protocol, OSPFv3/RIPng/IS-ISv6/BGP IPSec encryption and rich routing policy control functions.
End device access security
- Unified endpoint access binding authentication, including EAD secure check authentication, 802.1X authentication, endpoint MAC address authentication, web-based portal authentication, endpoint access static binding, and MAC address auto-learning and binding.
- ARP attack prevention, including fixed source MAC address, ARP attack protection, ARP source suppression, ARP detection, source MAC consistency check and protection, ARP rate limit, and ARP active acknowledgement mechanism.
Equipment management security
- Role-based access control that allocates resources based on roles, and provides users and roles mapping.
- Control plane traffic restriction, traffic control and filtering based on protocol type, queue, known protocol and specific protocol.
- Remote security management, such as SNMPv3, SSH, and HTTPS remote management.
- Management behavior control and audit, including AAA server central authentication, command line authority and real-time report of operation records.
Granular control
Uses granular identification and control to rate limit and filter application layer services and ensure bandwidth and provides detailed network statistics for network optimization.
Performs load balancing based on bandwidth, user, user group, service, or application by using asymmetric link, traffic load balancing, and multi-topology dynamic routing technologies.
Supports flexible bandwidth sharing based on service, user, user group, link, and user bandwidth.
Intelligent network management
Cloudnet APP management
Comprehensive network management methods—Supports command line and SNMP.
Zero-configuration setup—Enables zero configuration setup, USB-based and URL-based automatic configuration.
Comware embedded EAA function—Monitors the internal events and status of the system’s software and hardware components. If a fault occurs, it collects diagnostic information and attempts to make automatic repairs as well as sending the diagnostic information to a specific email address.
High availability
Independent hardware processing module for monitoring and programmable components that supports online upgrade and auto loading to strengthen product reliability.
Millisecond link fault detection technology Bidirectional Forwarding Detection (BFD) and Track between BFD and static routing, RIP/OSPF/BGP/ISIS dynamic routing, VRRP, or interface backup.
Network quality analyzer (NQA) and Track between NQA and static routing, VRRP, or interface backup.
Multi-device redundancy and load balancing (VRRP/VRRPE).
Hardware specifications
Item

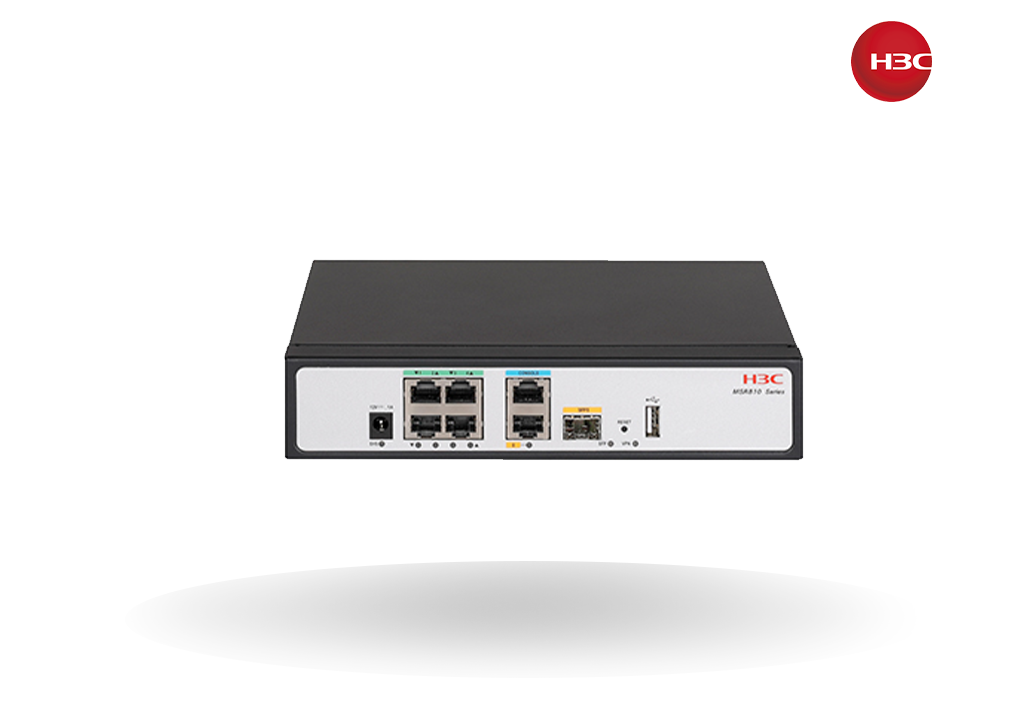

MSR610
| Forwarding Performance In Service (IMIX) | 200 Mbps |
| CPU | 800MHz |
| Memory | 1 GB |
| Internal Flash | 256 MB |
| External Flash | NA |
| USB ports | 1 |
| Console ports | 1 |
| WAN ports | 1 × GE copper port
1 × SFP port |
| LAN port | 4 × GE ports (can be configured as WAN interfaces) |
| Max power consumption | 24W |
| Power voltage(adapter) | External power adapter: 100 VAC to 240 VAC @ 50 Hz/60 Hz |
| Power voltage(device) | DC 12V 2A |
| Dimensions (W × D × H) | 210 x 140 x 44 mm |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 5% RH to 95% RH, non-condensing |
| EMC | FCC Part 15 (CFR 47) CLASS A
ICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 ETSI EN 300 386 EN 301 489-1 EN 301 489-17 |
| Safety | UL 60950-1
CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 FDA 21 CFR Subchapter J GB 4943 |
Software specifications
Item
Specification
| Layer 2 switching | Ethernet, Ethernet II, VLAN (port-based VLAN, guest VLAN), 802.3x, 802.1p, 802.1Q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE client, PPPoE server, and DDR |
| IP services | Unicast/multicast, TCP, UDP, IP option, IP unnumbered, policy-based routing, NetStream, and sFlow |
| IP application | Ping, Tracert, ICMP, DHCP server, DHCP relay, DHCP client, DNS client, DNS proxy, DDNS, NTP, and SNTP |
| IPv4 routing | Static routing
Dynamic routing: RIPv1/v2, OSPFv2, BGP, IS-IS Route iteration Policy routing Equal-cost multi-path routing (ECMP) Multicast routing: IGMPv1/v2/v3, PIM-DM, PIM-SM, MBGP, MSDP |
| QoS | LR, port-based mirroring, Port Trust Mode, and port priority
Committed access rate (CAR) FIFO, WFQ, CBQ Generic Traffic Shaping (GTS) Traffic classification |
| Security | PPPoE client & server, portal, 802.1X
Local authentication, RBAC, RADIUS, TACACS+ Basic Firewall Function, ASPF, ACL, filter, connection limit IKE, IPsec L2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0, URPF, mGRE, GRE ARP attack prevention SSL VPN, GDVPN AES, DES, 3DES, MD5, SHA1 |
| High availability | VRRP, VRRPv3
Bandwidth-based load balancing and backup IP address-based load balancing and backup NQA collaboration with routing, VRRP or interface backup |
| Management and maintenance | Couldnet APP management
SNMP v1/v2c/v3, MIB, SYSLOG, RMON BiMS remote management, booting from USB drive CLI, file system, and dual image DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, and SNMP Console port login, Telnet (VTY) login, SSH login, and FTP login |
Chain enterprises wireless marketing solution
For commercial chain enterprises, MSR610 routers are ideal wireless coverage products for their branches and outlets. One MSR610 router itself can provide network security, routing, and switching services for an outlet, simplifying network deployment and management. The IMC and service platforms deployed at the center perform centralized management for the branches and outlets, improving the network deployment and management efficiency.
One MSR610 itself deployed at the outlet can provide network security, wireless connection, routing, and switching services.
The MSR610 can store PHP dynamic webpages, pictures, flashes, videos, etc. and push the advertising and multimedia contents to the clients if they come online, which avoids occupying the network bandwidth.
The router supports online activity management and audit and performs granular traffic control.
